£6,499.00
Estimated Delivery
Guaranteed Safe & Secure Checkout
The Mod 10 range is effectively your custom-made refrigerated wine cabinet where you choose your style of frame that matches the decor and the furnishing in your home. You can even join more than one module together - this will create a truly unique piece of furniture
MD-14 can be installed as a freestanding unit, or built into a wall/alcove for a seamless finish depending on which model you choose. The Mod 10 range has a full aluminium structure and is completed with a laminated wooden frame in a traditional or linear style. The shelves supplied are as shown on product photo as standard, however if you wish to change this - please contact us before ordering for a quotation.
Multiple Temperature Zones
Range of 4°C - 18°C
Multiple Sizes Available
See Options
60 or 120 Bottle Capacity
Maximum storage capacity
Energy Efficient
Low energy consumption
Interior & Exterior

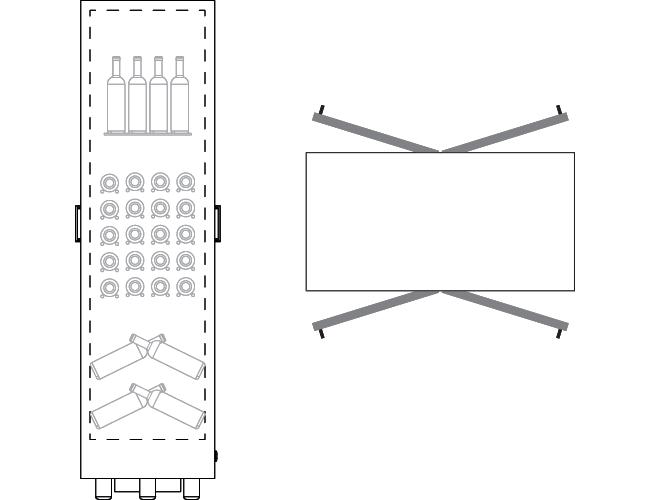

The MD-14 offers a side-by-side hinged door opening style in which the double glazed door is fully UV treated to protect your collection from light. The interior is lit with warm white LED lighting and the interior of the cabinet is manufactured from aluminium which ensures a high quality design.
As well as displaying your collection, the Mod 10 range also has an automatic defrost system and automatic evaporation system to ensure the correct storage conditions are met - the doors are also lockable.
The shelves in the MD-14 wine wall are designed to display the wine bottles standing upright, as well as displaying various other accessories such as decanter and wine glasses.
MD-H14: Various bottle capacity, warm white LED lighting, solid back wall with a double door and lock - suitable for built in installation
The MD-H10, MD-H14 models must be fixed to the wall (min 30mm away from the wall) with the provided brackets.
Dimensions: Height: 1857mm Width: 900mm Depth: 350mm, Weight: 97kg
MD-M14: Various bottle capacity, warm white LED lighting, solid back wall with a double door and lock - suitable for built in installation
Dimensions: Height: 1898mm Width: 900mm Depth: 510mm, Weight: 103kg
MD-C14: Various bottle capacity, warm white LED lighting, see-through wall with 4 doors and lock, freestanding only.
Dimensions: Height: 1898mm Width: 900mm Depth: 510mm, Weight: 116kg
Temperature Capabilities
The Mod 10 wine walls are multi temperature zone units and have a multitude of temperature options depending on whether the fans are turned on or off and the temperature the cabinet is set to.
The temperature can be set using a digital control panel which also controls the lighting, fans and defrost cycle.
Example temperature operation, if set to 4°C:
Fans off - the wine wall will operate between 4°C at the bottom and 16°C at the top.
Fans on - the wine wall will operate between 4°C at the bottom and 10°C at the top.
The use of the fans creates a smaller temperature range as the cooler air can be distributed more evenly. Please note these are examples only and the actual temperature range may differ depending on ambient temperatures.
Installation Requirements
There are certain installation requirements needed for each model, please refer to their specification for instructions.
For example, to install the MD-H14 correctly and ensure the units do not over heat - it is advised the a gap of 30mm or more is left at the back of the unit - firstly to prevent any unwanted vibrations but also to allow warm air to escape above the wine wall.
The cool air enters the wine wall from the bottom so the gap between the floor and lower part of the wine wall should not be covered - the air flow should be free and unhindered like the image shown.
38-39dB Noise Level
Store your wine quietly
Vibration Free
Protect your wine in stillness
UV Glass Protection
Stop damaging UV rays
Multiple Temperature Options
Flexible temperature Settings
Learn More About Expo
EXPO are a synonymous brand in the world of wine storage, opting to offer something slightly different to a standard wine cooler in order to differentiate themselves from the competition and to securely position themselves as a leader in wine storage and wine walls.
Manufactured in their factory in Italy, just outside of Turin - here they design, develop and manufacture some of the most eye catching, high quality wine walls and wine coolers in the industry.
The Professional wine walls are distributed throughout more than 45 countries around the world, stretching from Australia to America - they really are a market leader in this industry.
Jessie, Expert Wine Storage "If you are looking to create a stunning feature piece in any space, an Expo wine wall will truly deliver and provide a real wow factor. Expo products look fantastic and importantly offer exceptional storage conditions for your wine collection too."
Here's all you need to know about the specifications of the Teco Mod 10 / MD-14 Wine Wall:
- Digital temperature controller
- Rechargeable carbon filter
- Magnetic strips for the decorative trims
- Automatic Defrost
- Heating function with heated rails
- Anti vibration system
- Inverter compressor
- Lock with key
- Ventilated cooling system - fan assisted
- Maximum bottle height is 370mm
- Warranty: 1 year parts and labour UK mainland and NI
- ROI warranty: 1 year parts only
