Here's all you need to know about the specifications of the Teco Vino TE10 Wine Wall:
- Automatic Defrost
- Heating function with heated rails
- Anti vibration system
- Inverter compressor
- Lock with key
- Ventilated cooling system - fan assisted
- Maximum bottle height is 370mm
- Warranty: 1 year parts and labour UK mainland and NI
- ROI warranty: 1 year parts only
EXPO wine walls are manufactured to order and typically take around 4-6 weeks to be produced – depending on the finish, accessories you have chosen.
Customers are advised to check the product dimensions to ensure the unit will fit through all doorways and please tell us about any obstructions, including steps and narrow passageways so we can make the necessary arrangements for the delivery.
A full height freestanding wine wall designed to display your collection in style. The Teca Vino TE10 has three options available with varying sizes to choose from, this model is from the Home range which means it is suitable only for domestic settings which include houses, mini bars etc. The Teca Vino has a full aluminium structure which can be covered with numerous different styles of wood/laminate but as standard is offered with a solid wood black (RAL9005) frame to complete the look.
The new innovative cooling system ensures reliability whilst making your collection of wine look like a real feature. The wine wall has four glass sides which gives your wines as much visibility as possible to the customer.
The Home range has additional features that add to the standard commercial range which includes a charcoal filter and a different compressor which has a lower dB reading than the commercial unit. This makes it an ideal show piece for your home.
Multiple Temperature Zones
Range of 4°C - 16°C
Multiple Sizes Available
See Options
60 or 120 Bottle Capacity
Maximum storage capacity
Energy Efficient
Low energy consumption
Interior & Exterior
The interior is manufactured from aluminium which is lit by white LED lighting strips mounted vertically down the side walls, this creates a real show piece and displays the wine inside like nothing else on the market. The exterior features sliding doors and two glass side panels which are fully UV treated - the doors are also lockable to ensure your wine is kept safely.
The shelves in the TE-10 wine wall are designed to display the wine bottles horizontally as seen in the photos.
TE-H10: 60 Bottle capacity, warm white LED lighting, 38 dB operation, solid back wall with 2 sliding doors and lock, charcoal filter and anti vibration system.
Dimensions: Height: 1852mm Width: 860mm Depth: 362mm, Weight: 97kg
TE-M10: 120 Bottle capacity, warm white LED lighting, 39 dB operation, solid back wall with 2 sliding doors and lock, charcoal filter and anti vibration system.
Dimensions: Height: 1893mm Width: 860mm Depth: 530mm, Weight: 107kg
TE-C10: 120 Bottle capacity, warm white LED lighting, 39 dB operation, 4 sliding doors - 360 degree view of wine bottles, charcoal filter and anti vibration system.
Dimensions: Height: 1893mm Width: 860mm Depth: 530mm, Weight: 120kg
Temperature Capabilities
The Teca Vino wine walls are multi temperature zone units and have a multitude of temperature options depending on whether the fans are turned on or off and the temperature the cabinet is set to.
The temperature can be set using a digital control panel which also controls the lighting, fans and defrost cycle.

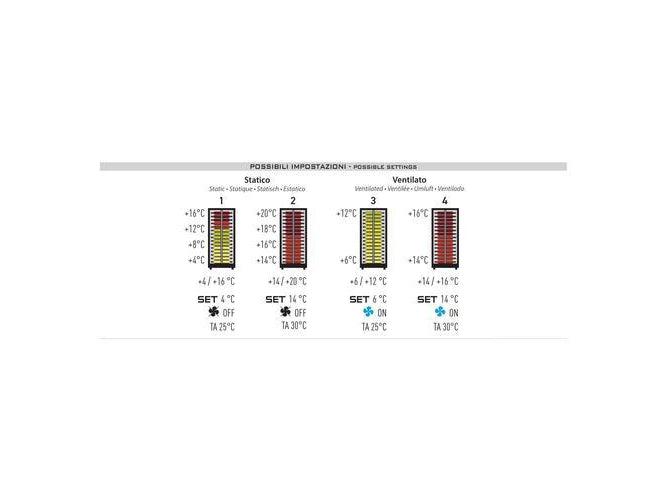

Example temperature operation, if set to 4°C:
Fans off - the wine wall will operate between 4°C at the bottom and 16°C at the top.
Fans on - the wine wall will operate between 4°C at the bottom and 10°C at the top.
The use of the fans creates a smaller temperature range as the cooler air can be distributed more evenly. Please note these are examples only and the actual temperature range may differ depending on ambient temperatures.
Installation Requirements
There are certain installation requirements needed to install the built in models correctly, to ensure the units do not overheat it is advised the a gap of 30mm or more is left at the back of the unit - firstly to prevent any unwanted vibrations but also to allow warm air to escape above the wine wall.
The cool air enters the wine wall from the bottom so the gap between the floor and lower part of the wine wall should not be covered - the air flow should be free and unhindered like the image below.
Cabinet Finish
The standard cabinet finish is aluminium with a black (RAL9005) solid wood frame, this can be exchanged for other options including white (RAL9010), dune - gold, dune - pearl white, dune - black, dune - white (additional cost may apply to certain colours). To find out more, visit the configurator here. Please contact us to discuss these options - we will be more than happy to assist.
38-39dB Noise Level
Store your wine quietly
Vibration Free
Protect your wine in stillness
UV Glass Protection
Stop damaging UV rays
Multiple Temperature Options
Flexible temperature Settings
Learn More About Expo
EXPO are a synonymous brand in the world of wine storage, opting to offer something slightly different to a standard wine cooler in order to differentiate themselves from the competition and to securely position themselves as a leader in wine storage and wine walls.
Manufactured in their factory in Italy, just outside of Turin - here they design, develop and manufacture some of the most eye catching, high quality wine walls and wine coolers in the industry.
The Professional wine walls are distributed throughout more than 45 countries around the world, stretching from Australia to America - they really are a market leader in this industry.
Jessie, Expert Wine Storage "If you are looking to create a stunning feature piece in any space, an Expo wine wall will truly deliver and provide a real wow factor. Expo products look fantastic and importantly offer exceptional storage conditions for your wine collection too."
