£7,399.00
Estimated Delivery
15th May - 17th May
Guaranteed Safe & Secure Checkout

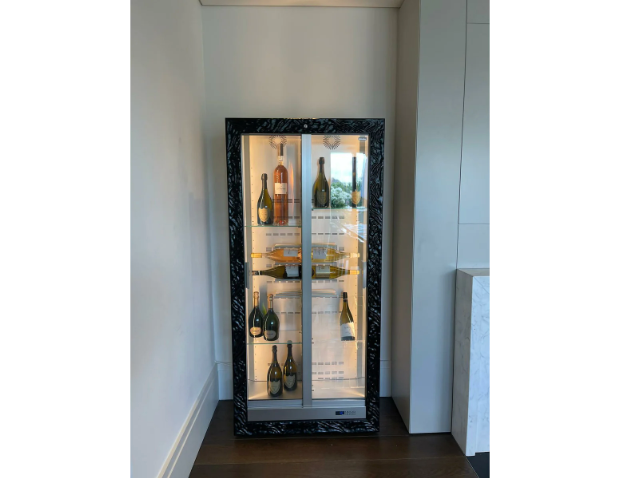

The TBV12 is very similar to the TV-12 except this model is designed to be built into an alcove or cabinets to create a seamless finish. The professional range is designed purely for commercial settings such as bars, hotels, restaurants and has a full aluminium structure which can be manufactured to have different styles of wood attached to the front to create a real feature piece. The standard unit above is offered with a solid black wood frame however if you wish to change this - please contact us before ordering or use the configurator here.
The built in range is one of the newest additions by EXPO with a new and upgraded cooling system which enables the unit to be built in due to how quality components and an inbuilt ventilation system which helps cool the compressor.
Multiple Temperature Zones
Range of 4°C - 16°C
Multiple Sizes Available
See Options
112 Bottle Capacity
Maximum storage capacity
Energy Efficient
Low energy consumption
Interior & Exterior
With a double sliding glass door which are fully UV treated to ensure light does not damage your collection, the TBV-12 is an absolute show piece. The interior is lit with white LED lighting and the interior of the cabinet is manufactured from aluminium which ensures a high quality design. All wine walls should protect your wines as well as really show them off, the Built in Teca Vino range also has an automatic defrost system and automatic evaporation system to ensure the correct storage conditions are met - the doors are also lockable.
The shelves in the TBV-12 wine wall are designed to display the wine bottles horizontally as seen in the photos.
TBV-M12: 112 Bottle capacity, white LED lighting, 47 dB operation, solid back wall with 2 sliding doors and lock - suitable for built in installation
Dimensions: Height: 1901mm Width: 880mm Depth: 530mm, Weight: 107kg
TBV-12 Installation
There are certain installation requirements needed to install the built in models correctly, to ensure the units do not over heat it is advised the a gap of 30mm or more is left at the back of the unit - firstly to prevent any unwanted vibrations but also to allow warm air to escape above the wine wall.The cool air enters the wine wall from the bottom so the gap between the floor and lower part of the wine wall should not be covered - the air flow should be free and unhindered like the image below.
Temperature Capabilities
The Teca Vino wine walls are multi temperature zone units and have a multitude of temperature options depending on whether the fans are turned on or off and the temperature the cabinet is set to.
The temperature can be set using a digital control panel which also controls the lighting, fans and defrost cycle.
Example temperature operation, if set to 4°C:
Fans off - the wine wall will operate between 4°C at the bottom and 16°C at the top.
Fans on - the wine wall will operate between 4°C at the bottom and 10°C at the top.
The use of the fans creates a smaller temperature range as the cooler air can be distributed more evenly. Please note these are examples only and the actual temperature range may differ depending on ambient temperatures.
Cabinet Finish
The standard cabinet finish is aluminium with a black solid wood frame, this can be exchanged for other options including white, dune - gold, dune - pearl white, dune - black, dune - white. To find out more, visit the configurator here. Please contact us to discuss these options - we will be more than happy to assist.
38-39dB Noise Level
Store your wine quietly
Vibration Free
Protect your wine in stillness
UV Glass Protection
Stop damaging UV rays
Multiple Temperature Options
Flexible temperature Settings
Learn More About Expo
EXPO are a synonymous brand in the world of wine storage, opting to offer something slightly different to a standard wine cooler in order to differentiate themselves from the competition and to securely position themselves as a leader in wine storage and wine walls.
Manufactured in their factory in Italy, just outside of Turin - here they design, develop and manufacture some of the most eye catching, high quality wine walls and wine coolers in the industry.
The Professional wine walls are distributed throughout more than 45 countries around the world, stretching from Australia to America - they really are a market leader in this industry.
Jessie, Expert Wine Storage "If you are looking to create a stunning feature piece in any space, an Expo wine wall will truly deliver and provide a real wow factor. Expo products look fantastic and importantly offer exceptional storage conditions for your wine collection too."
